Product Description:

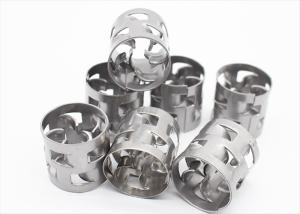

The Metal Pall ring is a highly efficient type of packing material used in Vacuum distillation processes. It is designed to offer optimal surface area and void space, allowing for superior heat transfer during these operations.
In addition to its use in Vacuum distillation, the Metal Pall ring can also be utilized in a variety of applications. For instance, Wet scrubbers for gas absorption also often employ this type of packing material. In such systems, the Pall rings work to create more contact between the gas and scrubbing liquid, leading to greater absorption efficiency.
Cooling towers represent another area where Metal Pall rings can be applied. Here, the rings allow for more uniform distribution of water, promoting effective heat transfer. Similarly, Mist eliminators also make use of Pall rings in order to remove liquid particles from gas streams.
Finally, some Gas absorption columns, Gas strippers, and Air washers may also utilize Metal Pall rings as part of their structure or design.
Features:
- Product Name: Metal Random Packing
- Size: Customized
- Feature: Low Pressure Drop, High Efficiency
- Port Of Loading: Xingang Port
- Performance: Heat-resistant
- Key Word: Tower Packing /Random Packing
Technical Parameters:
|
Size
|
Bulk density
|
Number
|
Surface area
|
Free volume
|
|
(mm)
|
(kg/m3)
|
(per m3)
|
(m2/m3)
|
(%)
|
|
16*16*0.3
|
360
|
201000
|
346
|
95.5
|
|
25*25*0.4
|
302
|
51000
|
212
|
96.2
|
|
25*25*0.5
|
400
|
51000
|
216
|
95
|
|
25*25*0.6
|
461
|
51000
|
219
|
94.2
|
|
38*38*0.4
|
218
|
15000
|
143
|
97.2
|
|
38*38*0.5
|
262
|
15180
|
145
|
96.7
|
|
38*38*0.6
|
328
|
15000
|
146
|
95.9
|
|
50*50*0.5
|
194
|
6500
|
106
|
97.5
|
|
50*50*0.8
|
315
|
6500
|
108
|
96.4
|
|
50*50*0.9
|
365
|
6500
|
109
|
95.4
|
|
76*76*0.8
|
205
|
1830
|
69
|
97.4
|
|
90*90*1.0
|
229
|
1160
|
62
|
97.1
|
Applications:
1) Used in absorption , scrubbing , and stripping services, such as CO2 and H2S selective absorption, air pollution control scrubbers.
2) Heat transfer
3) Liquid-liquid extraction
4) Light ends fractionators
FAQ:
Q: What is the brand name of the metal random packing product?
A: The brand name is Yuanhai.
Q: What is the model number of the metal random packing?
A: The model number is YH-04.
Q: Where is the metal random packing manufactured?
A: The metal random packing is manufactured in Hebei Province, China.
Q: What certification does the metal random packing product have?
A: The product is certified with ISO9001:2015.
Q: What is the minimum order quantity for the metal random packing?
A: The minimum order quantity is 1 M³.
